capacitor for motor en60252 polypropylene capacitor cbb60 100uf 450v sh itelcond capacitor

group name: CBB60 Ac motor capacitor

Min Order: 1 piece

brand name: DINGFENG

model: CBB60

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash

Export mode: Have the independent export and import right

update time: Tue, 04 Nov 2025 10:03:29 GMT

contact supplier

Paramtents

Type Polyester Film Capacitor
Application AC / Motor
Package Type Surface Mount
Capacitance 1-100uf
Rated Voltage 450V
Operating Temperature 40/70/21
Roted Voltage 250-600V
ated frequency 50/60HZ
Certificate CE.CQC.ISO9001.TUV
Material Plastic
Package / Case Normal Package

Packging & Delivery

Min Order1 piece

Briefing

AC running capacitor
CBB60 four wires with full resin
flat bottom
black Shell
EN60252

Detailed

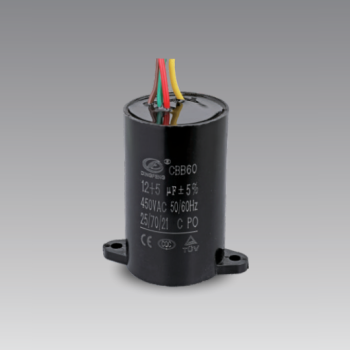

CBB60 BLACK SHELL FILM CAPACITOR 4 WIRES WITH FULL RESIN

1.Use round plastic shell, resin for sealing.

2.Flat bottom

3.Fasten terminals: 4 wire

4.Plastic can be PP or PC

5.Full resin

6.color: black

CBB60 BLACK SHELL FILM CAPACITOR 4 WIRES WITH FULL RESIN PRODUCT ANATOMY

CBB60 BLACK SHELL FILM CAPACITOR 4 WIRES WITH FULL RESIN SPECIFICATION

CBB60 BLACK SHELL FILM CAPACITOR 4 WIRES WITH FULL RESIN USAGES

CBB60 CAPACITOR UASGES

▷Suitable for starting and operating 50Hz(60Hz)AC Single-phase household electrical appliances.

▷Widely used as the start-up and running capacitor that is special for micro-water pump,cleaning machines,and single-phase household electrical appliances.

CBB60 BLACK SHELL FILM CAPACITOR 4 WIRES WITH FULL RESIN SIZE LIST

CBB60 4 wires with full resin size list
Capacity（uf）	Size (450V)	Capacity（uf）	Size (450V)
1uf	30*50	18uf	40*70
2uf	30*50	20uf	40*70
3uf	30*50	25uf	45*70
4uf	30*50	30uf	45*70
5uf	30*50	35uf	45*93
6uf	30*50	40uf	45*93
7uf	35*60	45uf	50*92
8uf	35*60	50uf	50*92
9uf	35*60	55uf	50*92
10uf	35*60	60uf	50*100
12uf	35*70	70uf	50*120
14uf	35*70	80uf	55*120
15uf	40*70	90uf	55*120
16uf	40*70	100uf	55*120
