power factor 25 kvar capacitor to 10kvar power capacitor 100V DFMJ shunt 250V

group name: Power capacitor

Min Order: 1 piece

brand name: DINGFENG

model: DFMJ

Nearest port for product export: Ningbo, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash

Export mode: Have the independent export and import right

update time: Thu, 21 Nov 2024 16:54:16 GMT

contact supplier

Paramtents

Type Polyester Film Capacitor
Application Power, AC/MOTOR
Package Type Surface Mount, surface mount
Capacitance 11kv power capacitor, 11kv power capacitor
Rated Voltage 450V
Operating Temperature -25℃~55℃, 40/70/21
Roted Voltage 250-600V
ated frequency 50/60HZ
Certificate CE.CQC.ISO9001.TUV
Mounting Type Chassis Mount
RoHS Status ROHS Complaint
Color Grey

Packging & Delivery

Min Order1 piece

Briefing

DFMJ capacitor has following features:
1.Energy saving
2.Built-in explosion-proof equipment
3.Service life≥3 years

Detailed

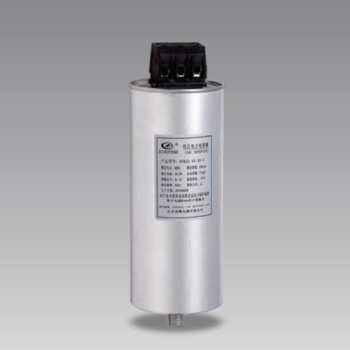

DFMJ COLUMNIFORM CAPACITOR OF SELF-HEALING

1.Use round Aluminum shell, Aluminum lid for sealing.

2. Providing strengthened safety protection, reinforced connection terminals and reactive compensation device parts.

3. Fixing stud M8*12

4.Designed into column type and mini structure,this product can be installed in any direction.Providing strengthened safety protection,reinforced connection terminals and reactive compensation device parts,it is the first rank product that is more suitable for the power grid.

DFMJ COLUMNIFORM CAPACITOR OF SELF-HEALING PRODUCT ANATOMY

DFMJ COLUMNIFORM CAPACITOR OF SELF-HEALING SIZE LIST

DFMJ Capacitor Size List
Capacity(kvar)	Size	Capacity(kvar)	Size
DFMJ0.45-5-3(1)	76*175	DFMJ0.4-5-3(1)	76*175
DFMJ0.45-7.5-3(1)	76*175	DFMJ0.4-7.5-3(1)	76*175
DFMJ0.45-10-3(1)	86*245	DFMJ0.4-10-3(1)	86*245
DFMJ0.45-15-3(1)	96*245	DFMJ0.4-15-3(1)	96*245
DFMJ0.45-20-3(1)	106*245	DFMJ0.4-20-3(1)	106*245
DFMJ0.45-25-3(1)	116*245	DFMJ0.4-25-3(1)	116*245
DFMJ0.45-26-3(1)	116*245	DFMJ0.4-26-3(1)	116*245
DFMJ0.45-28-3(1)	116*290	DFMJ0.4-28-3(1)	116*290
DFMJ0.45-30-3(1)	116*290	DFMJ0.4-30-3(1)	116*290
DFMJ0.45-40-3(1)	136*290	DFMJ0.4-40-3(1)	136*290
